3D printing has helped transform the way that architects and model makers construct architectural models and present their ideas.
This is due to the layered construction method that 3D Printing utilizes to build objects, and the ability to accurately place building material anywhere within each of those layers.
It creates the following advantages:
With most traditional manufacturing methods, physical cutting tools are used to create these characteristics. But with 3D printing, the tools used are light waves and nozzles. Both of which, can be emitted or made at far smaller sizes than the traditional tools. Even down to the nanoscale.
This allows for 3D printed architectural models with shapes and features that are much finer and more intricate than before.
Whether they were generated algorithmically, digitally sculpted, parametrically modelled or 3D scanned, many designs that model makers were not able to manufacture previously, are now possible.
3D printed architectural models can be printed with almost any of these characteristics that an architect may require. The range of 3D printing materials is already vast and growing rapidly. Millions of colours are available in high definition and their placement is digitally controlled. Completely transparent resins are common. Even glass is now available. And the hardness and flexibility can be adjusted to any level required.
By adding each individual part of each individual layer, 3D printing allows model makers to control precisely what material and characteristic they require for each area of the shape. One can create multi-material shapes with varying levels of resolution, density, colour and transparency, all within the same 3d printed architectural model.
With 3D printing, the entire shape is built up (or down) from one side to the other. With control of every single part in between, the internal material can be placed in any desired amount or arrangement. Resulting in 3D printed architectural models that can go from completely hollow, up to solid, and any density in between. This can greatly reduce the material usage and cost of a model.
Especially unique to 3D printing, are internal lattice structures which can be added to hollow objects. These can aid architects with physical requirements like the strengthening of hollow models.
The relatively diverse capabilities of 3D printers allow for architectural models that previously required multiple manufacturing processes, to be accomplished all in a single 3D print. Consider some example cases:
Shapes that required painting after manufacture, can now just be printed in colour.
A hard shapes that required softer sections to be attached after its manufacture, can now just be printed with all the hard and softer shapes in a single print.
A molded shape that required additional holes or trimming after being cast, can now just be printed with all the required features.
Or making a shape with a highly detailed section, that requires a separate and more accurate machine to add it afterwards.
3D printed models can now be printed on a single machine, and in a single print. Which saves the model makers time and the cost of requiring multiple machines or processes.
Before 3D printing, each traditional method of manufacture had its own constraints that hindered the model maker’s design process and reduced the availability of shapes. Whether it was a cutter or a mold, each tool restricted the creation of shapes in some way.
But with 3D printing, because we can accurately place and bond the newly added building material in any location we desire, it is now possible to create almost any 3D printed architectural model shapes that can be imagined.
When scaling architectural designs down to the size of a model, many features become too thin to manufacture and include in the model. Complex geometries, fine textures and thin features often have to be simplified, thickened or removed by the model makers.
But with all the aforementioned capabilities of 3D printing, many of those geometries, texture and features can now be 3D printed. Meaning that 3D printers are able to print architectural models closer to their original full-scale designs than was previously possible.
Additionally, sections with different characteristics, do not have to be split up and manufactured separately. They can usually all be produced in the same print.
Depending on the complexity of the shape, 3D printing is generally faster than the cutting and sculpting methods traditionally used to build architectural models.
The different facets of a model would usually have to be made separately and then assembled together manually. But, again with all the previously mentioned advantages of 3D printing, it is now possible for model makers to produce the whole design with all the different facets in a single 3d printed architectural model.
As soon as the digital design for the model has been completed, the printer can start printing the entire model unaided. At any time of the day, and days at a time. This saves greatly on time, labour and associated costs.
Additionally, model makers can print multiple shapes or versions simultaneously.
Although freshly 3D printed models generally require some post-processing steps like cleaning, cutting or curing, their advantages usually make up for this additional time.
Traditional model making methods like cutting, require that a sheet of material be trimmed away, leaving the desired shape behind (Subtractive Manufacturing). This means that the material that was removed, is wasted. With 3D printing, the material used to construct the shape is usually the only material used in the building of the shape (Additive Manufacturing). Except for 3D printing methods where disposable support structures are required.
Meaning that 3D printed architectural models can be created at a lower cost to the environment.

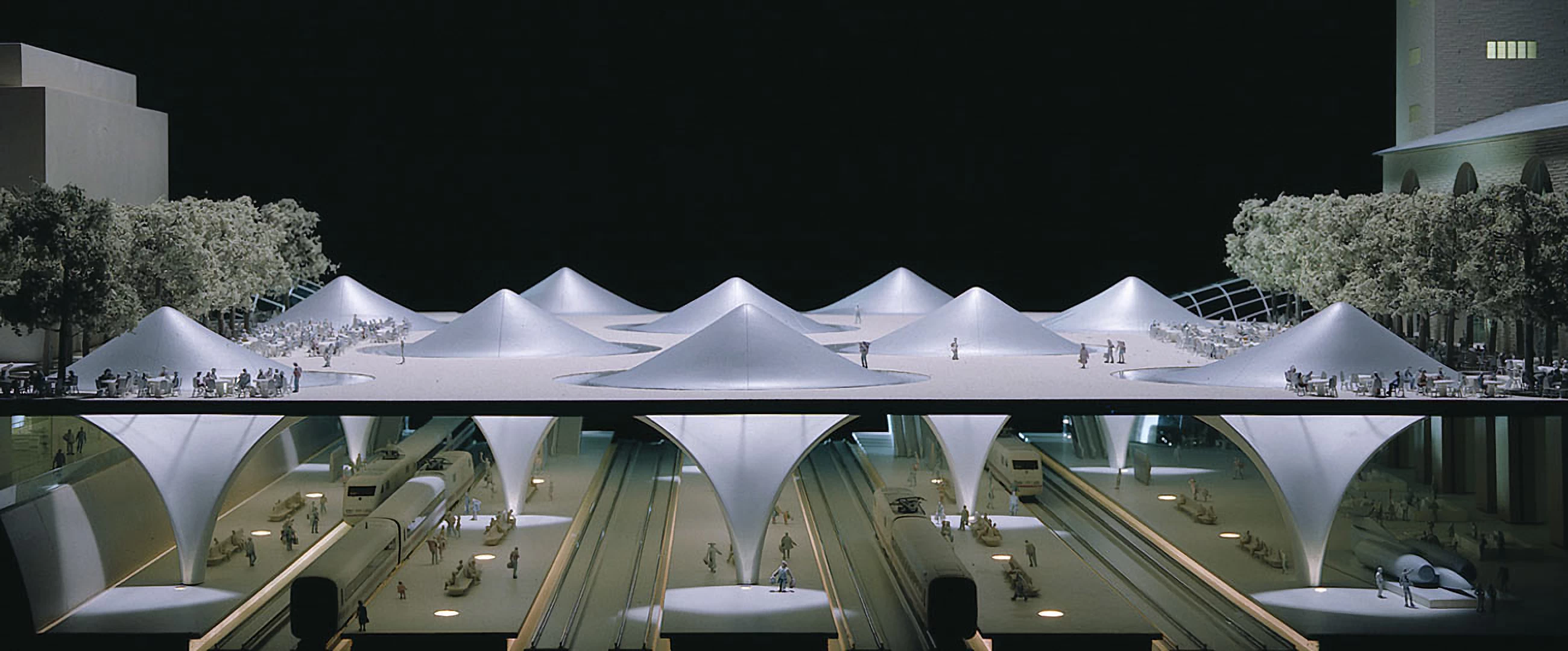

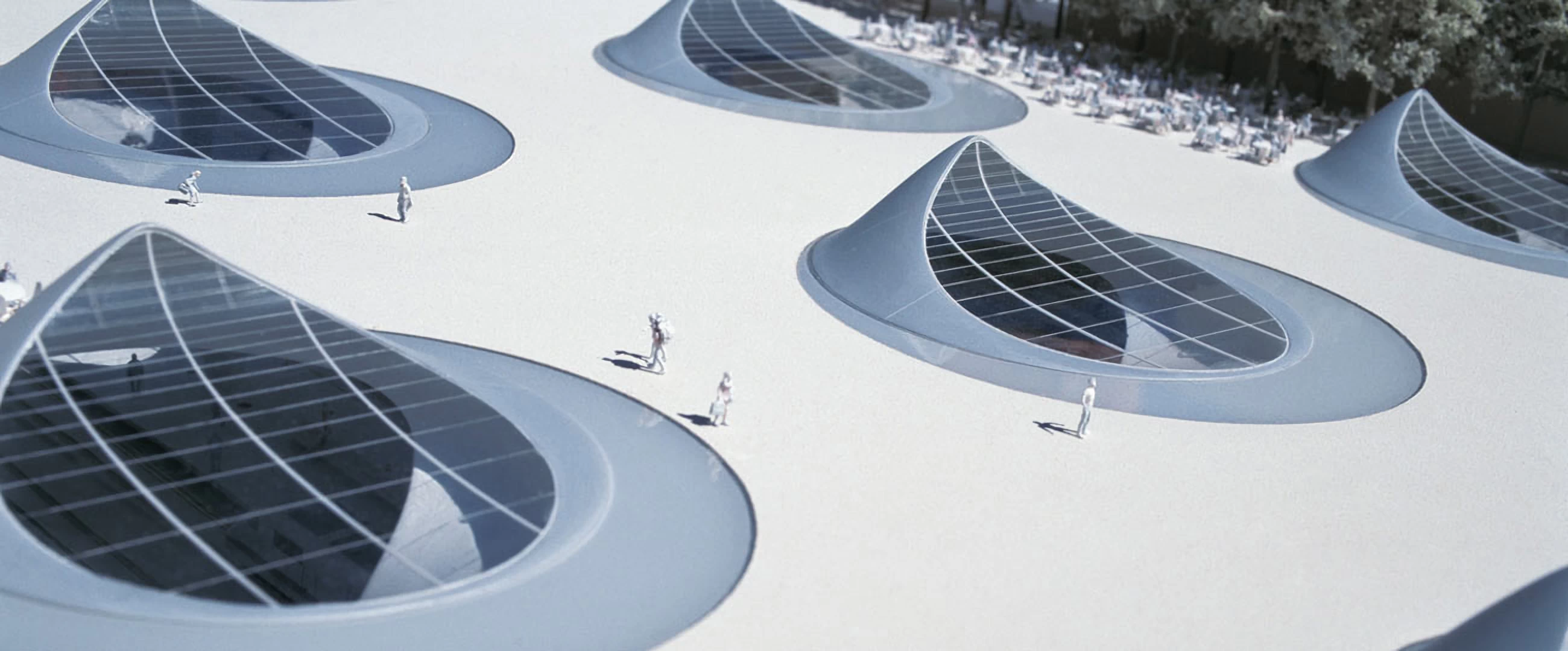

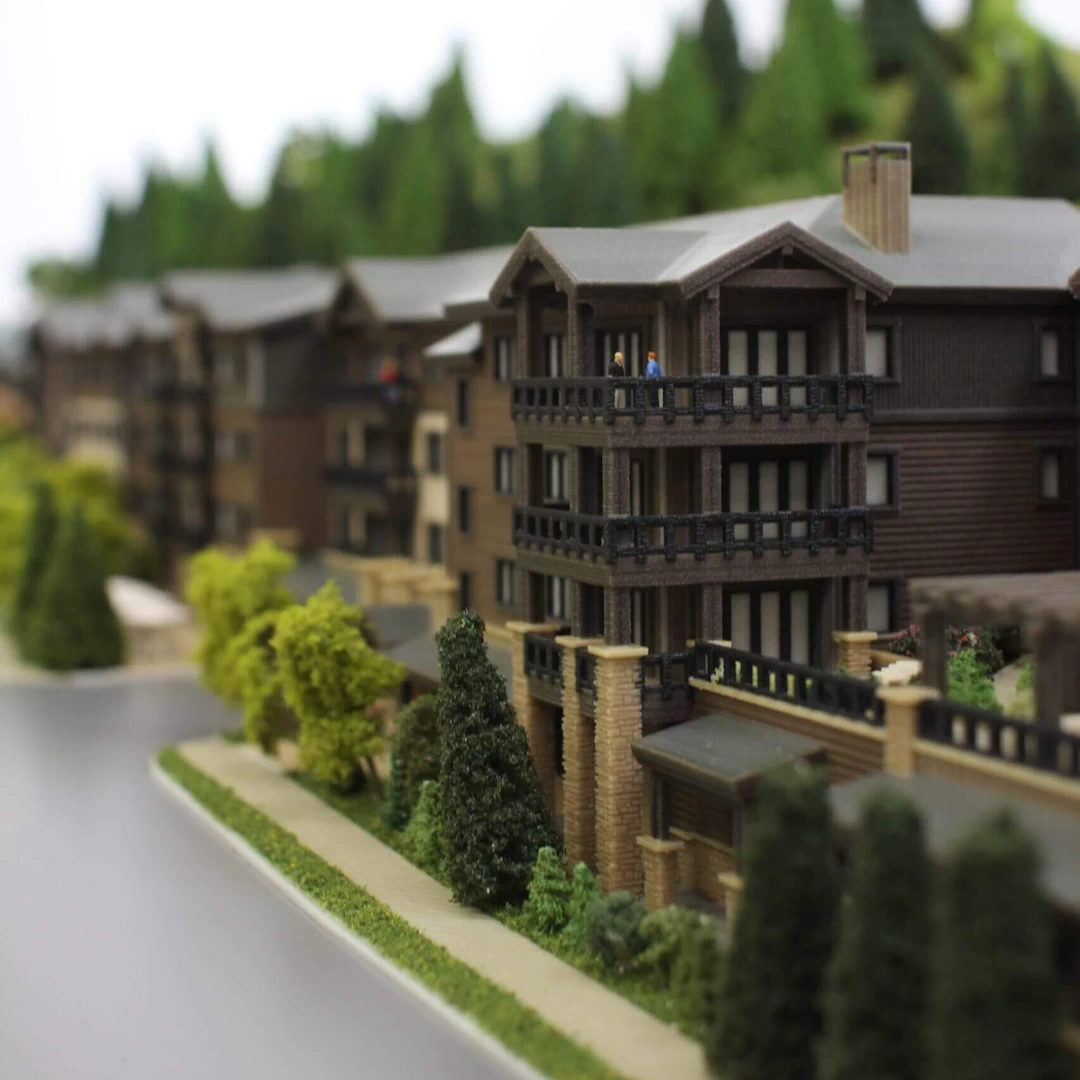

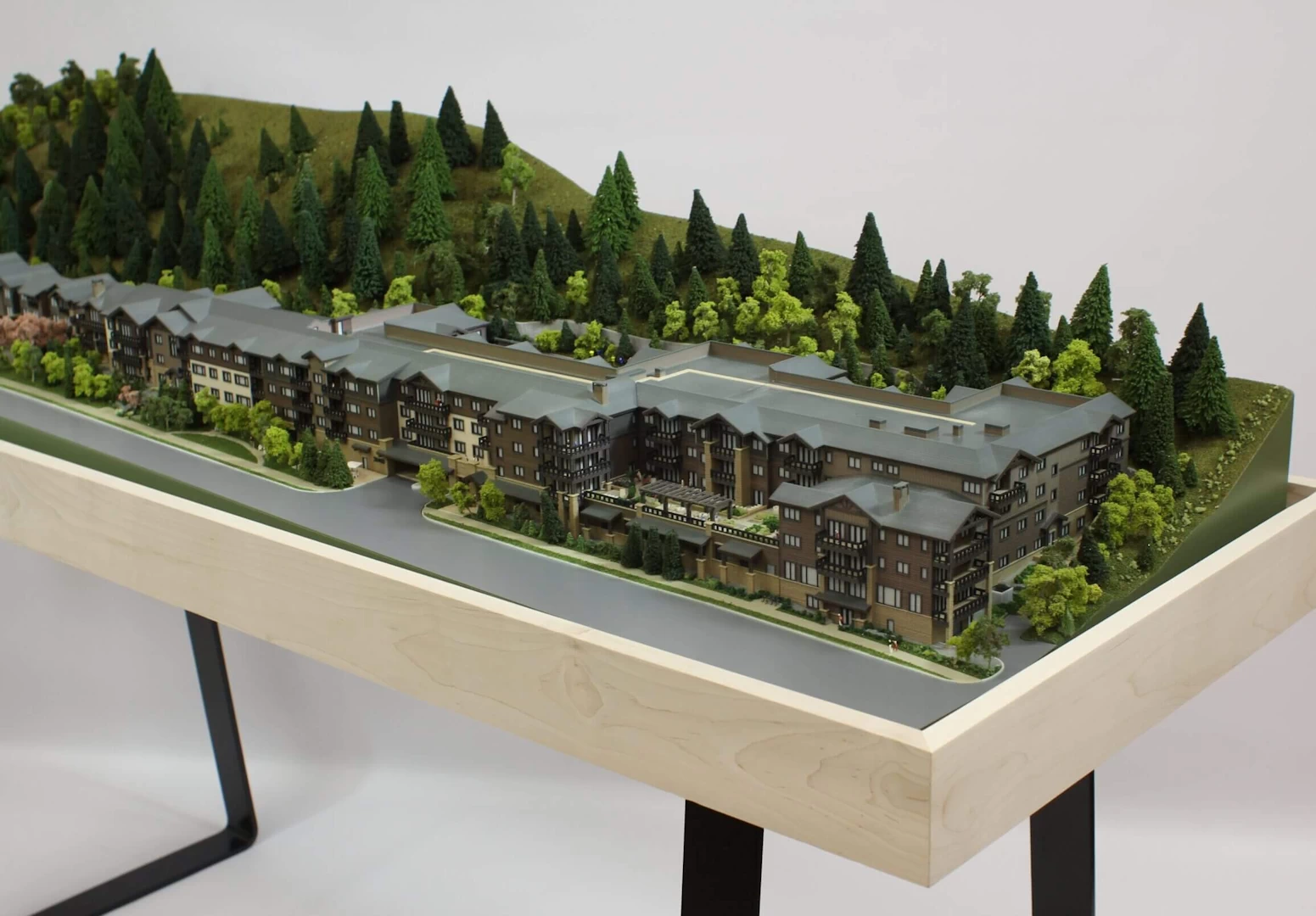

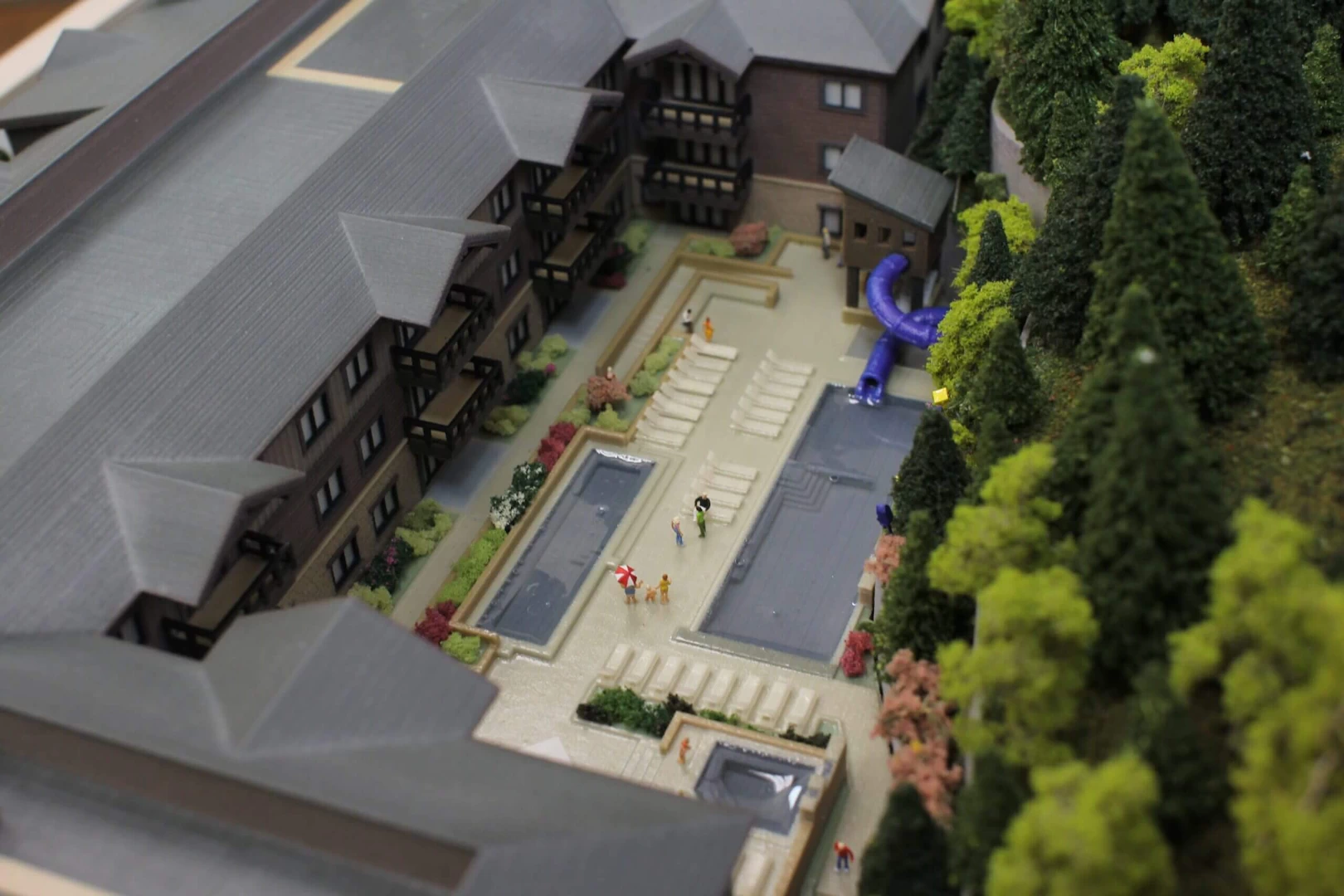

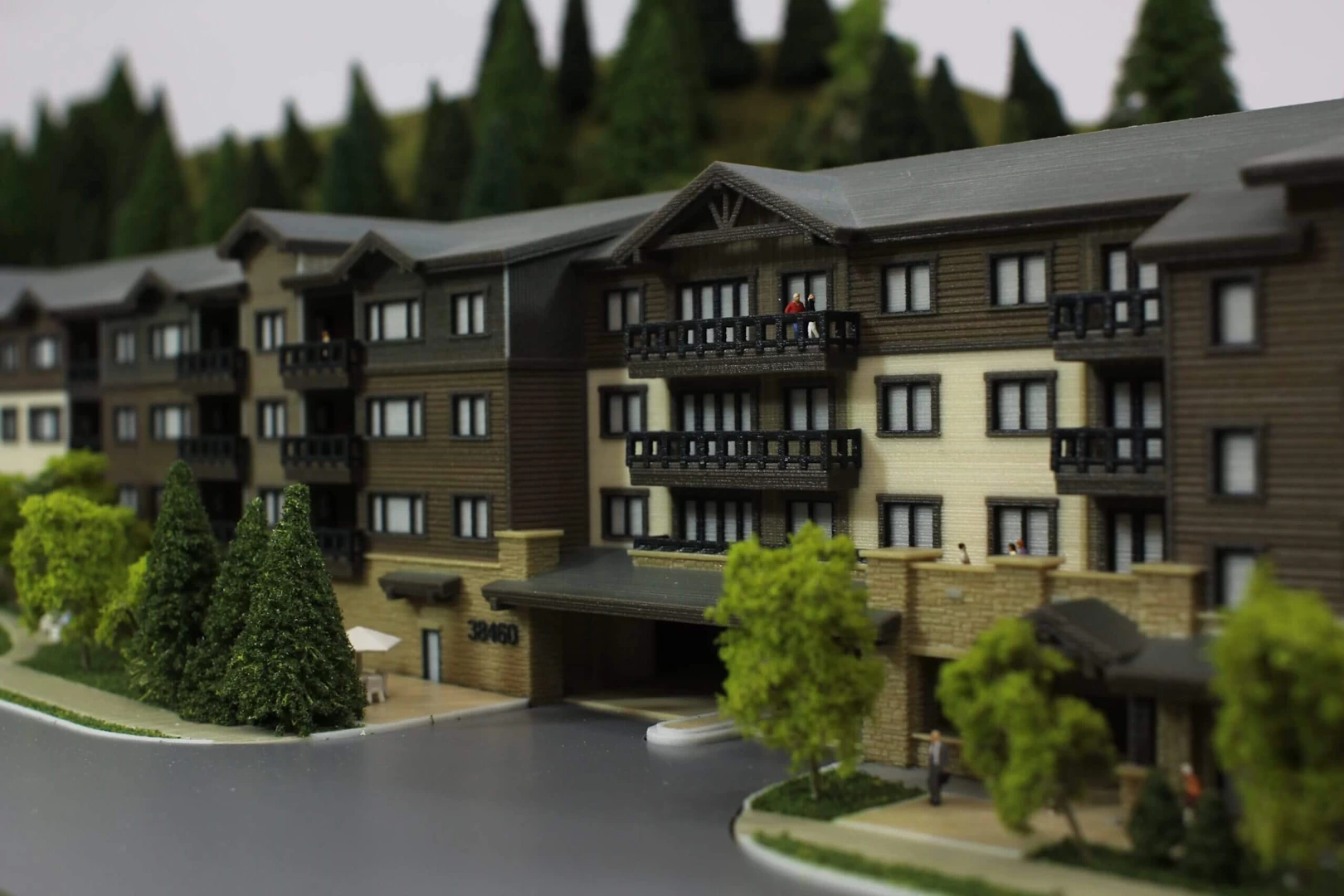

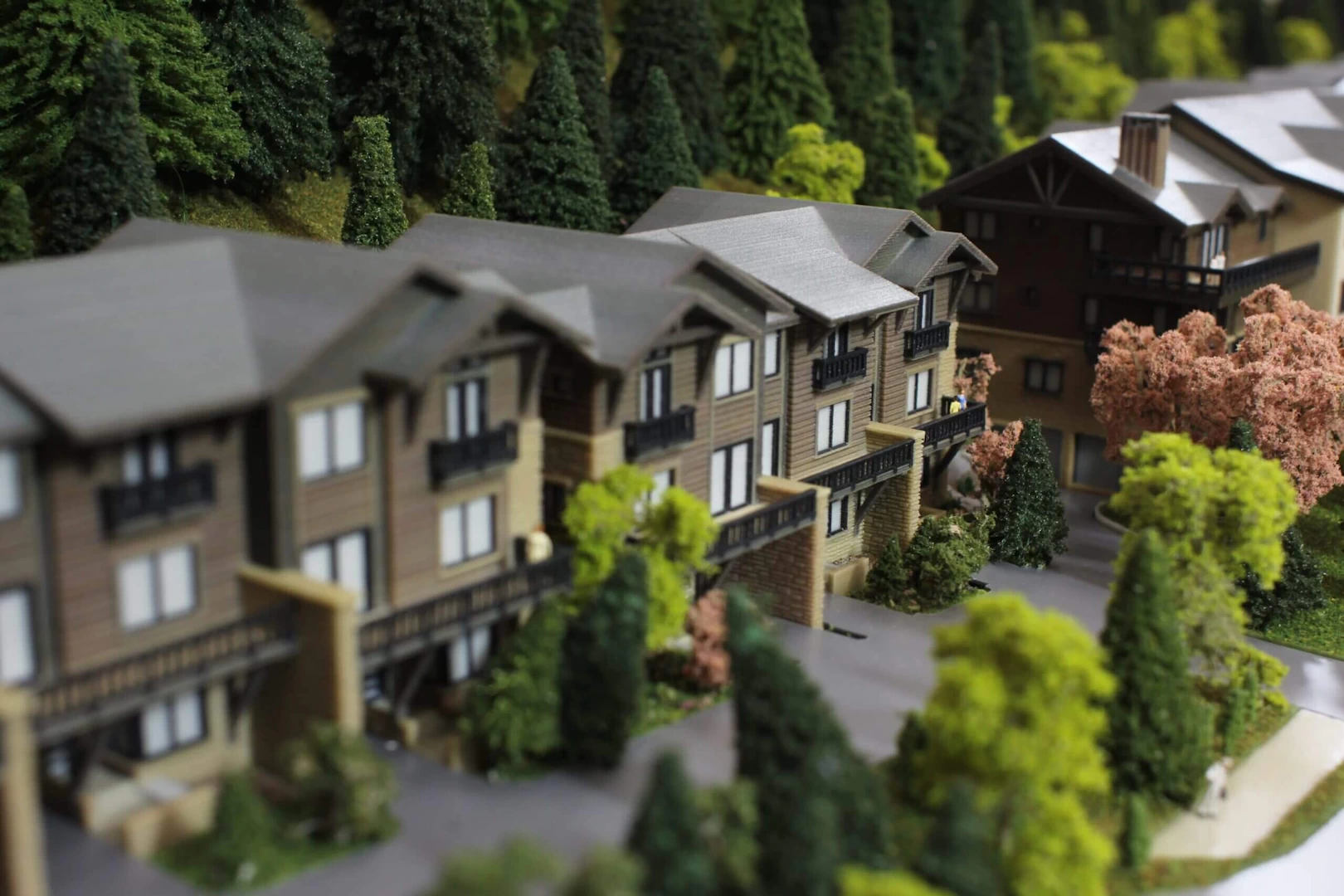

Below are some of the best 3D Printed Architectural Models from around the world.
This model was printed for the 'Civitas sacra' interpretative centre at the Cathedral of St. Jacob in Šibenik. Laser scanning and 3D Photogrammetry were used on the cathedral to develop a accurate 3D file of the Cathedral, from which it was printed.
3D Printed with SLA Resin in Croatia

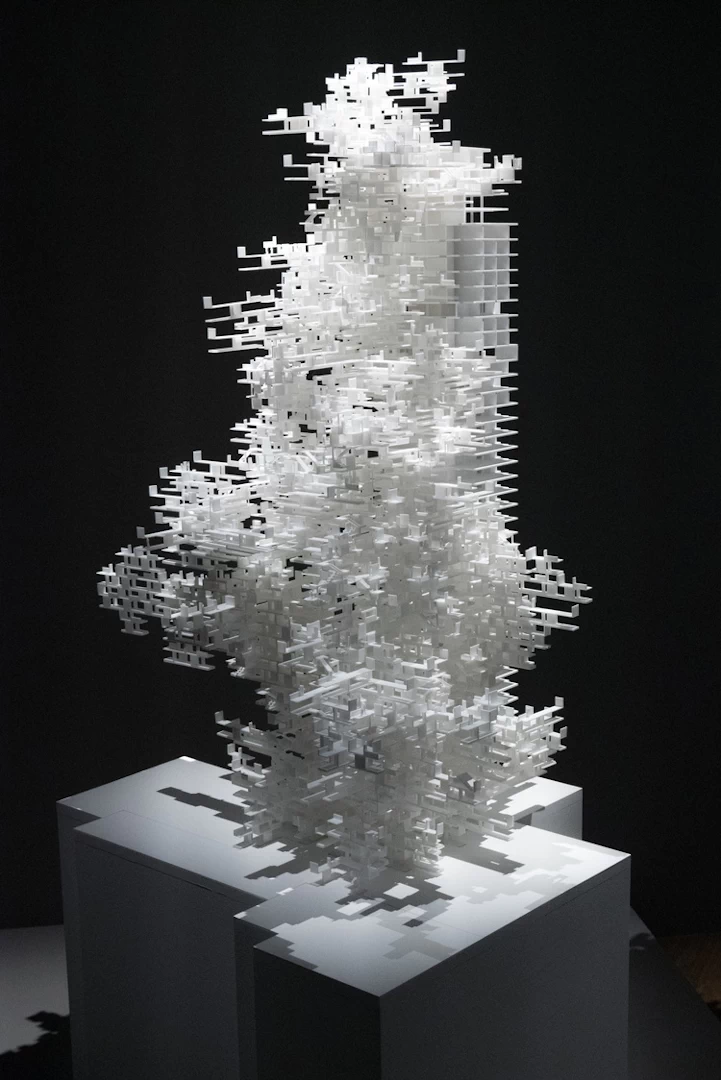

The team at Lab for Environmental Design Strategies researches algorithm based architectural forms.
3D Printed in UK
Designed for the invited group exhibition, Open House: Architecture and Technology for Intelligent Living. The house's form was developed as one of series of permutations conceived as an adjustable mix of intertwining programmatic zones providing spaces for working, living and sleeping. With a mutable layered skin, or 'deep surface', that mediates internal and external environments.
3D Printed with Nylon SLS in USA
A conceptual cantilevering design based on research into structural optimization and distributing material along lines of stress. The structure of the house was generated using an algorithm that imitates bone growth to deposit material where it is needed along lines of stress, resulting in a fibrous web rather than a solid envelope.
3D Printed with Nylon SLS in Belgium
This scale model of the City Hall of Antwerp was printed for its restoration project.
3D Printed with SLA Resin in Belgium
A scale model of the Kaohsiung Port and Cruise Service Center for its development presentation in southern Taiwan.
3D Printed with Plastic FDM in Hong Kong

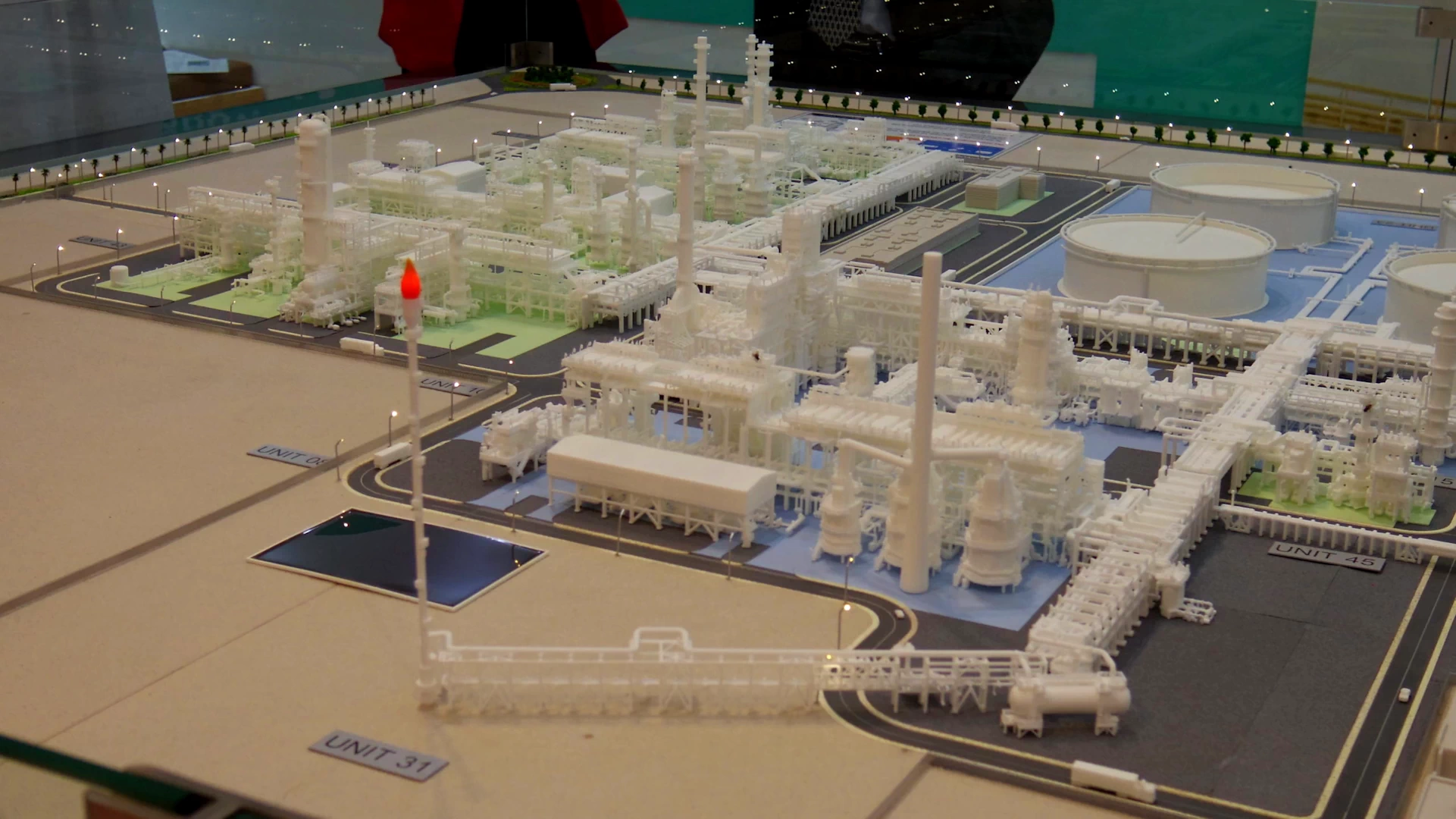

This scale model of ENOC's oil and gas processing facility in Dubai.
3D Printed with SLA Resin in Dubai
This Foreshore Ring Tower was designed by GLH Architects for the Cape Town Foreshore District proposal. The circular shaped tower aimed to create a landmark and viewing pod railway.
3D Printed with Nylon SLS in South Africa
A model of the Hogwarts Castle from the Harry Potter movies.
3D Printed with Plastic FDM in Australia
This scale model of the completed La Sagrada Familia Basilica in Barcelona, was printed for the the Junta Constructora del Temple Expiatori de la Sagrada Família Foundation; which is responsible for its completion.
3D Printed with Binder Jetted Powder in Spain
These are canopy designs for the Abu Dhabi Municipality Design competition for “Cool Abu Dhabi”.
3D Printed with SLA Resin in Dubai
A proposed villa design printed for a customer of Realization Group.
3D Printed in USA
A 1/100 scale model of the Chateau de Chambord in France
3D Printed in France
A scale model of Linde AG's gas plant in Chile.
3D Printed with Nylon SLS in Belgium
It took 300hrs of printing to produce this scale model of the ancient Parthenon building in Athens Greece.
3D Printed with SLA Resin in France
Using some of the original hand drawn plans and drone footage, Amalgam Model Makers 3d printed this 1:100 scale Classical Roman style country mansion for the owner.
3D Printed with SLA Resin in UK
A scale model of the Tribune Tower Residences in Chicago.
3D Printed in USA
In this project by MRGD Architects, research was conducted into the combination of infrastructure and architecture at the central London tower of Centre Point. It sought to explore the ideas of blurred boundaries, interplay and interaction between the transportation and commercial elements that converge in and around the building.
3D Printed with Nylon SLS in UK
A scale model of the Museum of the Future in Dubai.
3D Printed with Binder Jetted Powder in Dubai
